A waterproof bag that fails its first rainy commute is a return, a negative review, and a brand credibility problem. Kingsons manufactures waterproof bags with a three-layer protection architecture — fabric-level, seam-level, closure-level — and backs it with laboratory-verified testing on every production batch. Beach bags, dry bags, waterproof totes, crossbody bags, and backpacks. OEM/ODM since 1997.
Most waterproof bags rely on a single line of defence. When that line fails — and DWR coatings degrade, zippers split under pressure, seam stitching wicks moisture — contents get wet and brands get returns. 金森斯’ waterproof bag manufacturing operates three independent barriers simultaneously. The failure of one does not mean the product fails.
Triple-protection treatment is applied at the fiber level, not as a surface coating. Surface-applied DWR sprays degrade with washing and UV exposure. 金森斯’ treatment is a structural property of the material itself.
防水的: Liquid water does not penetrate under sustained contact or pressure. Submersion resistance in shallow-water applications.
Oilproof: Oil-based liquids including sunscreen, body lotion, and food oils do not penetrate or stain. Relevant for beach, pool, and outdoor lifestyle contexts where DWR-only waterproofing consistently fails.
Antifouling: Surface contamination from mud, sand, and organic material does not adhere. Wipe-clean maintenance without detergent.

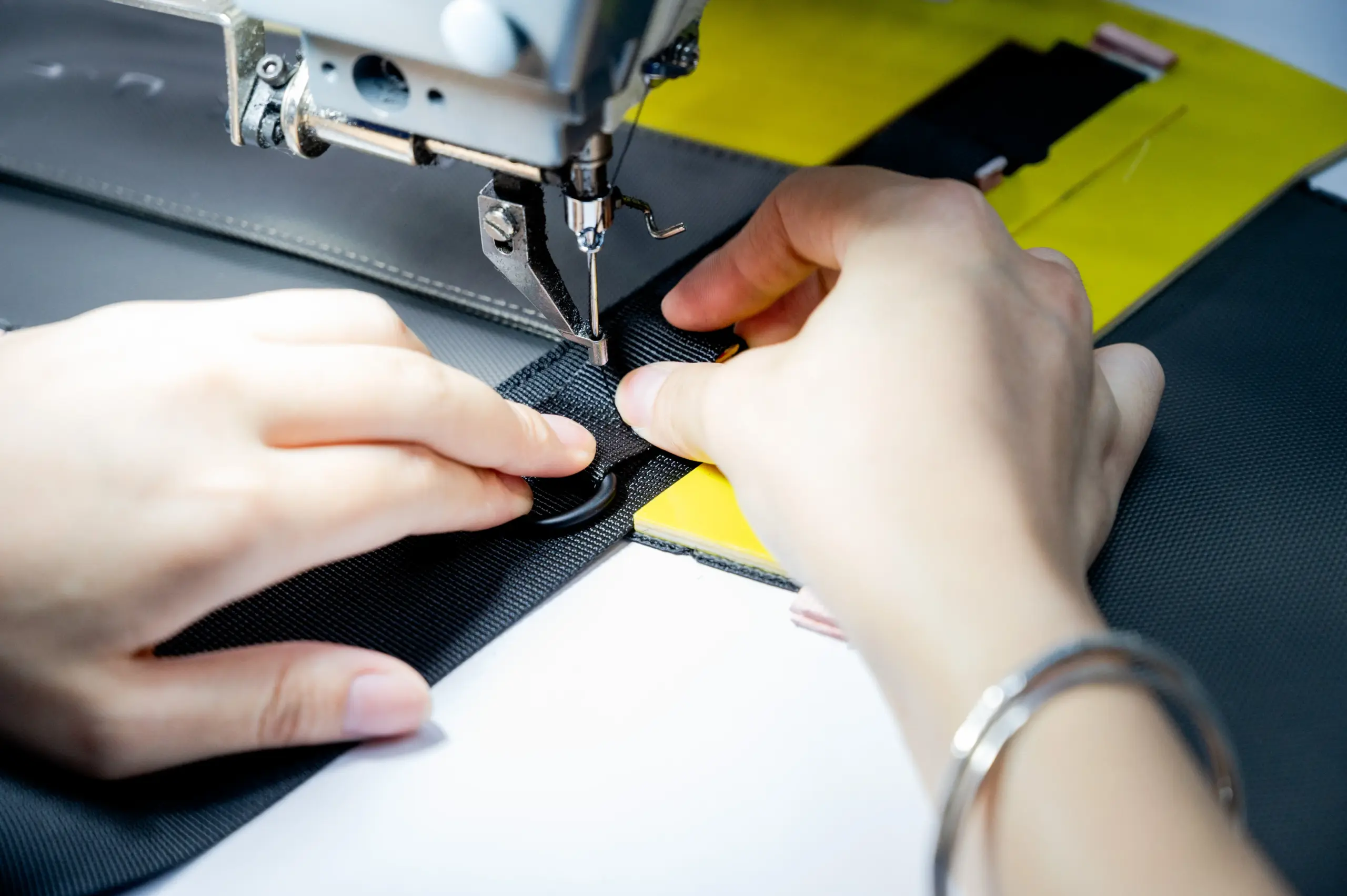

Every needle hole through fabric is a potential water entry point. Under sustained rain or hydrostatic pressure, even waterproof fabric fails at the seams if they are not sealed.
We apply seam tape sealing at all structural stress points: base corners, strap attachment junction seams, and top closure seams. The tape creates a secondary barrier independent of the fabric’s waterproof properties. If the outer fabric’s surface treatment degrades, the tape seal maintains waterproof integrity.

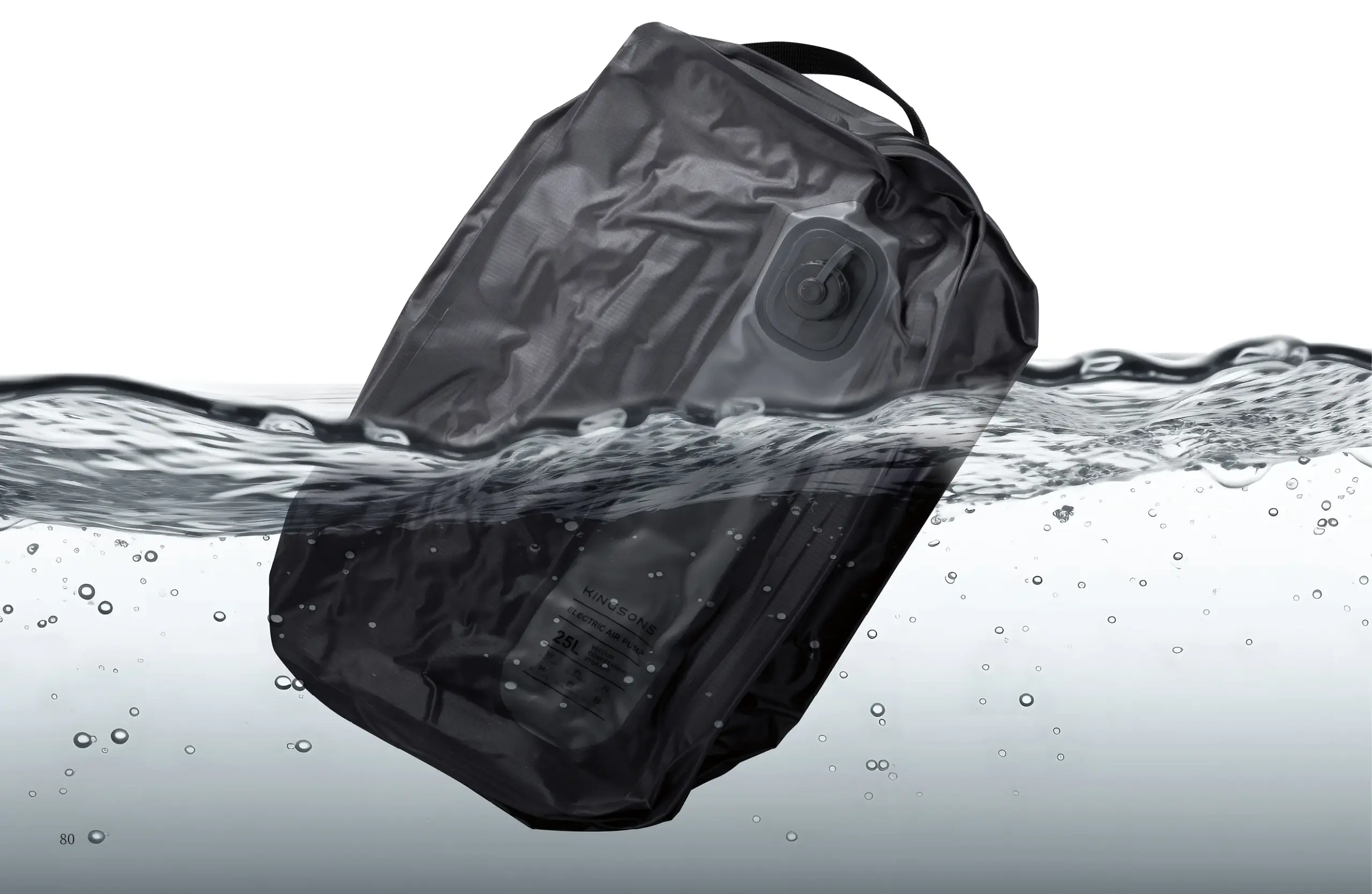

The zipper is the most common single point of failure in waterproof bags. Kingsons specifies YKK/SBS-grade waterproof zippers on all waterproof bag constructions, backed by laboratory testing most competitors do not perform.

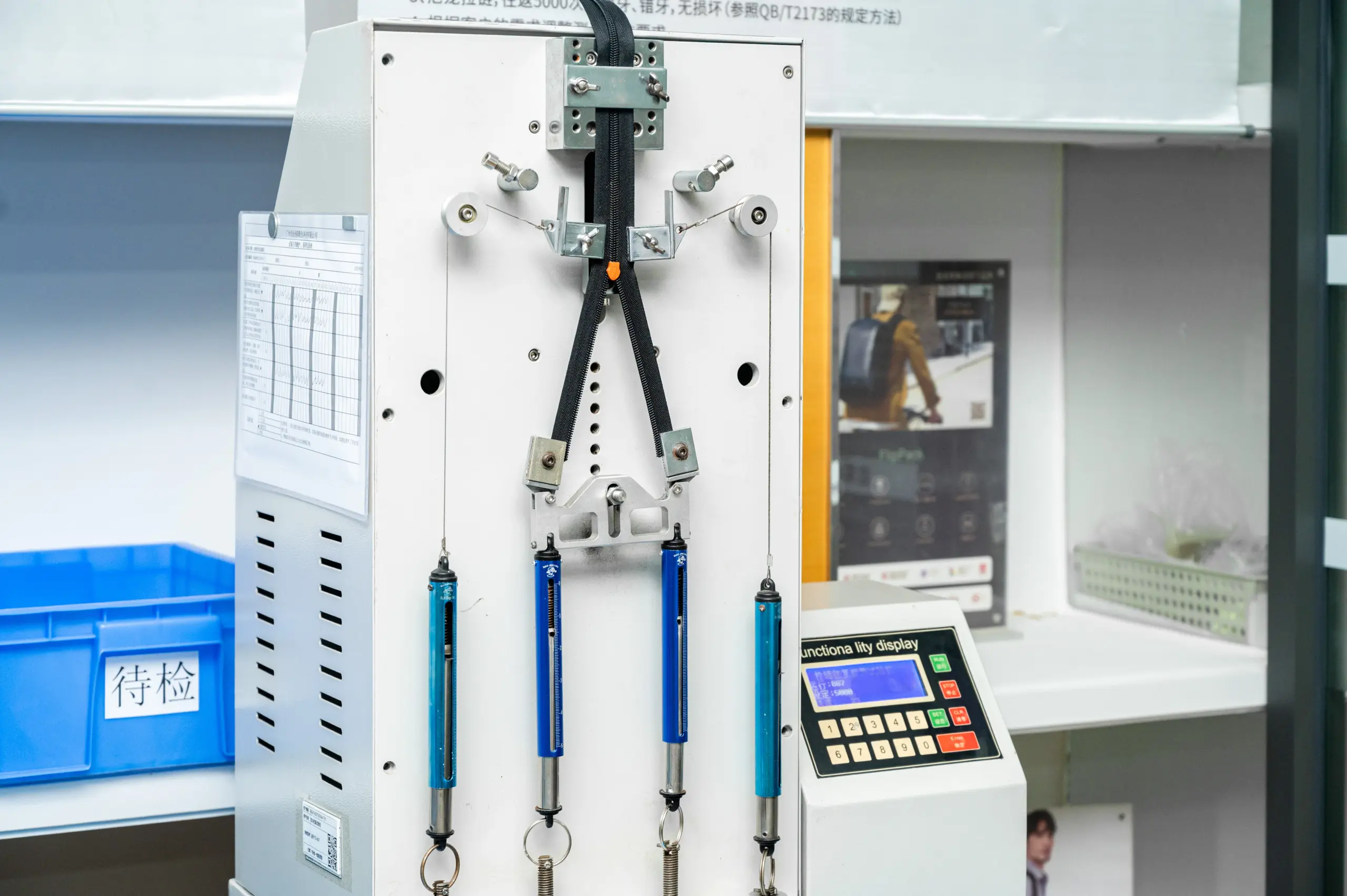

Zipper reciprocating tester — QB/T 2173 standard:
● 500 reciprocating cycles at 350N applied force
● Pass threshold 1: 牙齿零缺失
● Pass threshold 2: zero chain burst
Three-barrier waterproofing across every form factor — from urban commuter backpacks to submersion-rated dry bags for water sports.
扫描二维码或复制链接分享至微信
| 材料 | Waterproofing Level | 最适合 |
|---|---|---|
| 三重防护面料 | Fabric-level — waterproof + 防油 + 防污 | Premium waterproof; beach & outdoor lifestyle |
| DWR 防水尼龙 | Surface coating — rain resistance | Mid-range waterproof backpacks and totes |
| Nylon + TPU Composite | Laminate — waterproof; smooth surface aesthetic | Urban waterproof crossbody & fashion-forward lines |
| Welded Seam PVC / TPU | Full submersion — welded construction | Dry bags; kayak bags; water sports |
| Waterproof Oxford Cloth | Surface coating — everyday rain resistance | Budget waterproof bags; promotional totes |
| RPET再生聚酯 | DWR or triple-protection available | GRS-certified sustainable waterproof lines |
| Wipe-Clean PU Lining | Interior surface — moisture-resistant | Beach bags; gym bags; wet zone interiors |
| 规格区 | 可用选项 |
|---|---|
| Waterproofing level | DWR only / triple-protection fabric / seam-taped / fully welded |
| Bag form | All forms above; custom silhouette to brief |
| Closure type | 防水拉链 / roll-top / magnetic clasp with rain flap / drawstring with sealing |
| 颜色 | 命名库或自定义 CMF 开发; fashion colourway seasonal development |
| 标志申请 | Screen print, heat transfer, 激光雕刻, 刺绣, rubber patch — all verified under waterproof conditions |
| Interior | Wipe-clean lining; RFID 屏蔽衬里; padded laptop zone; wet pocket |
| 可持续发展 | GRS认证的RPET; 再生PU; 环保包装 |
| Capacity | Dry bags: 5L–30L; backpacks: 15L–40L; duffels: 30L–60L; custom |
| 包装 | Waterproof retail bag; 品牌盒; 符合FBA标准的纸箱 |

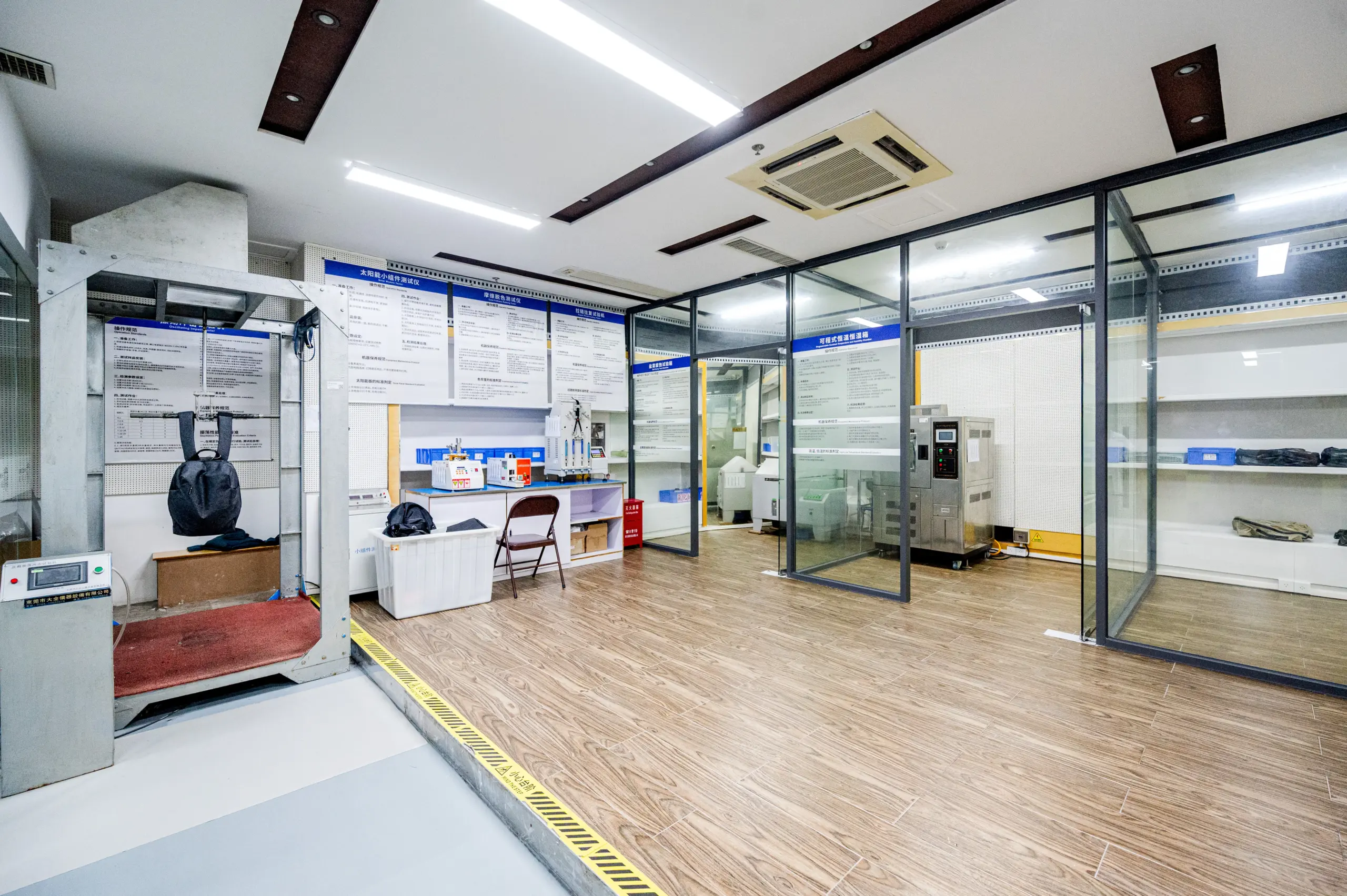

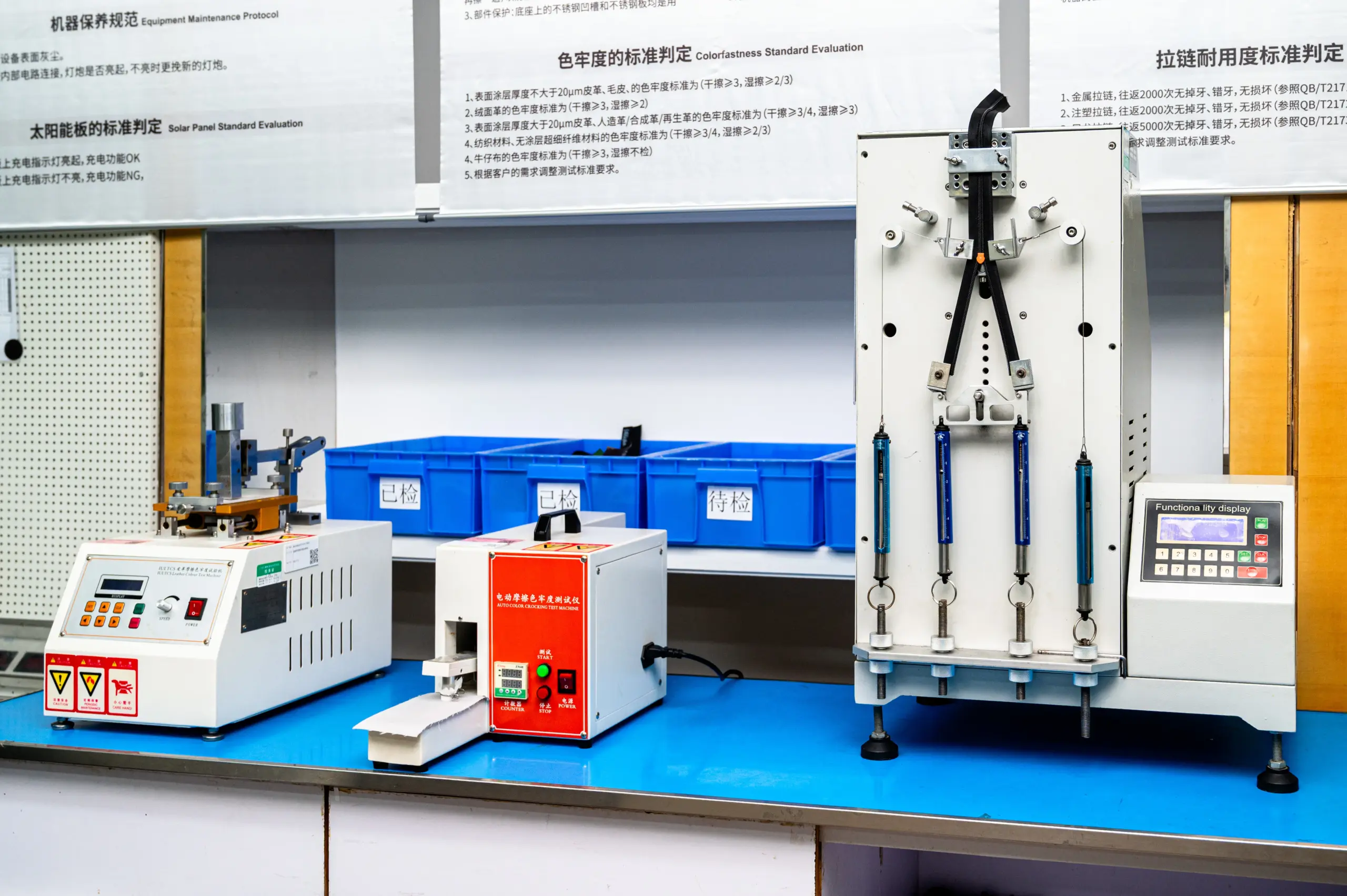

| 测试 | 设备 | 标准 | 通过门槛 |
|---|---|---|---|
| 防水拉链 | 拉链往复测试仪 | QB/T 2173 | 500 cycles — zero tooth loss, zero chain burst |

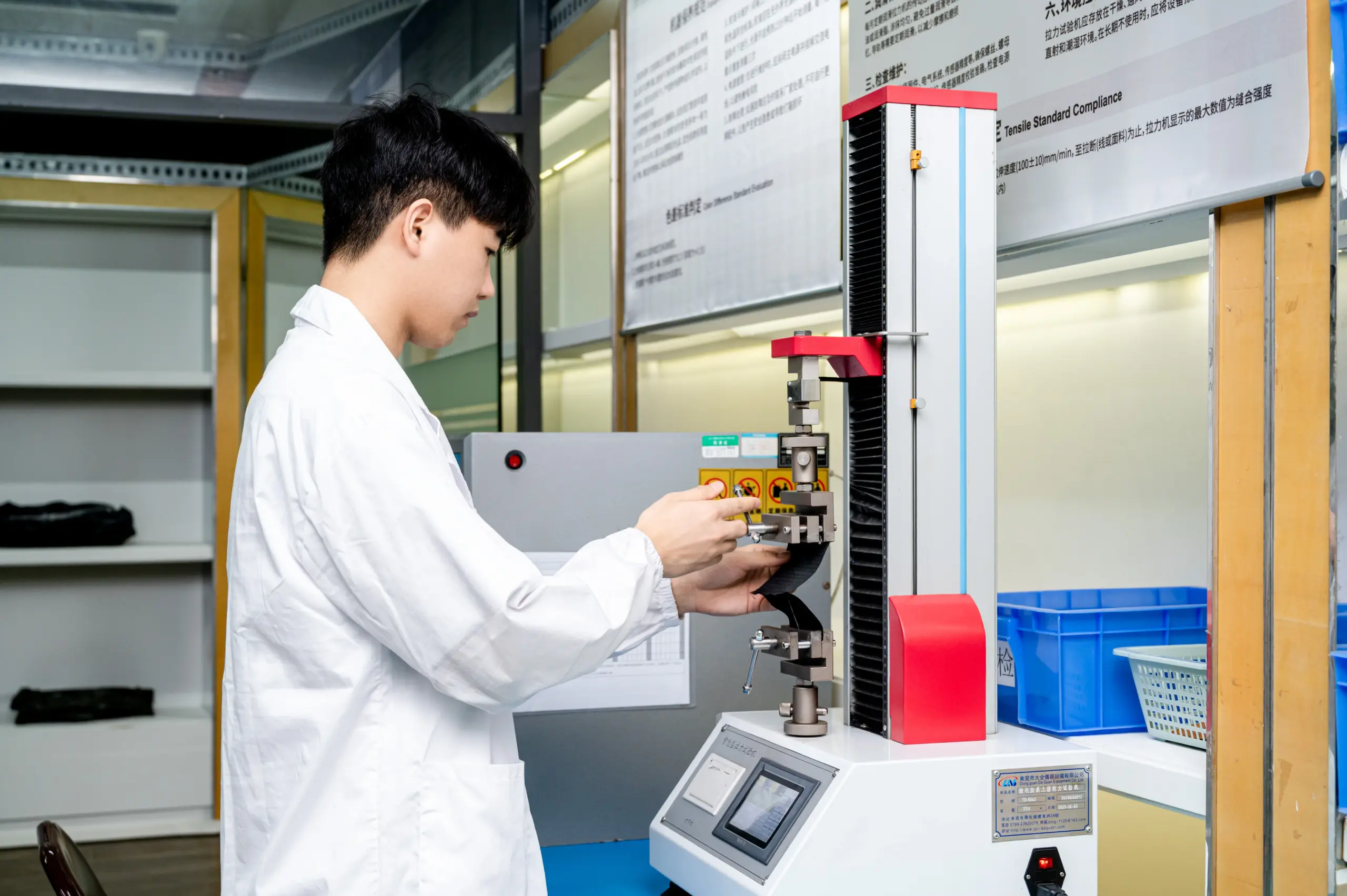

| 接缝拉伸强度 | 拉力试验机 | QB/T 1619 | 100±10mm/min 时最小 800N |
| 处理 / strap load | 振动冲击机 | QB/T 2920 | 350–500 cycles at 7KG — no breakage |

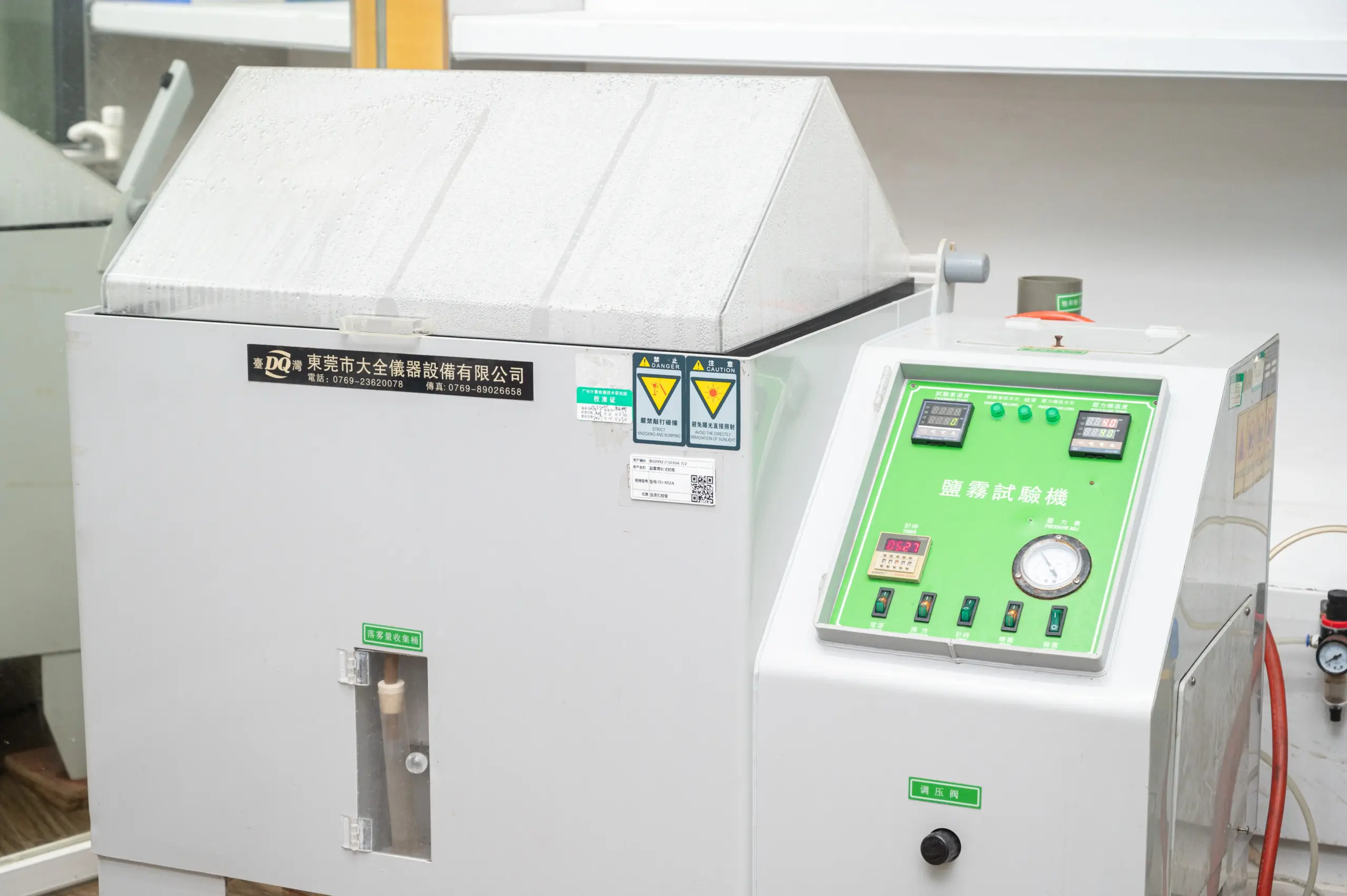

| 五金件腐蚀 | 盐雾试验箱 | QB/T 3826 | 年级 1 (0% 表面腐蚀) |

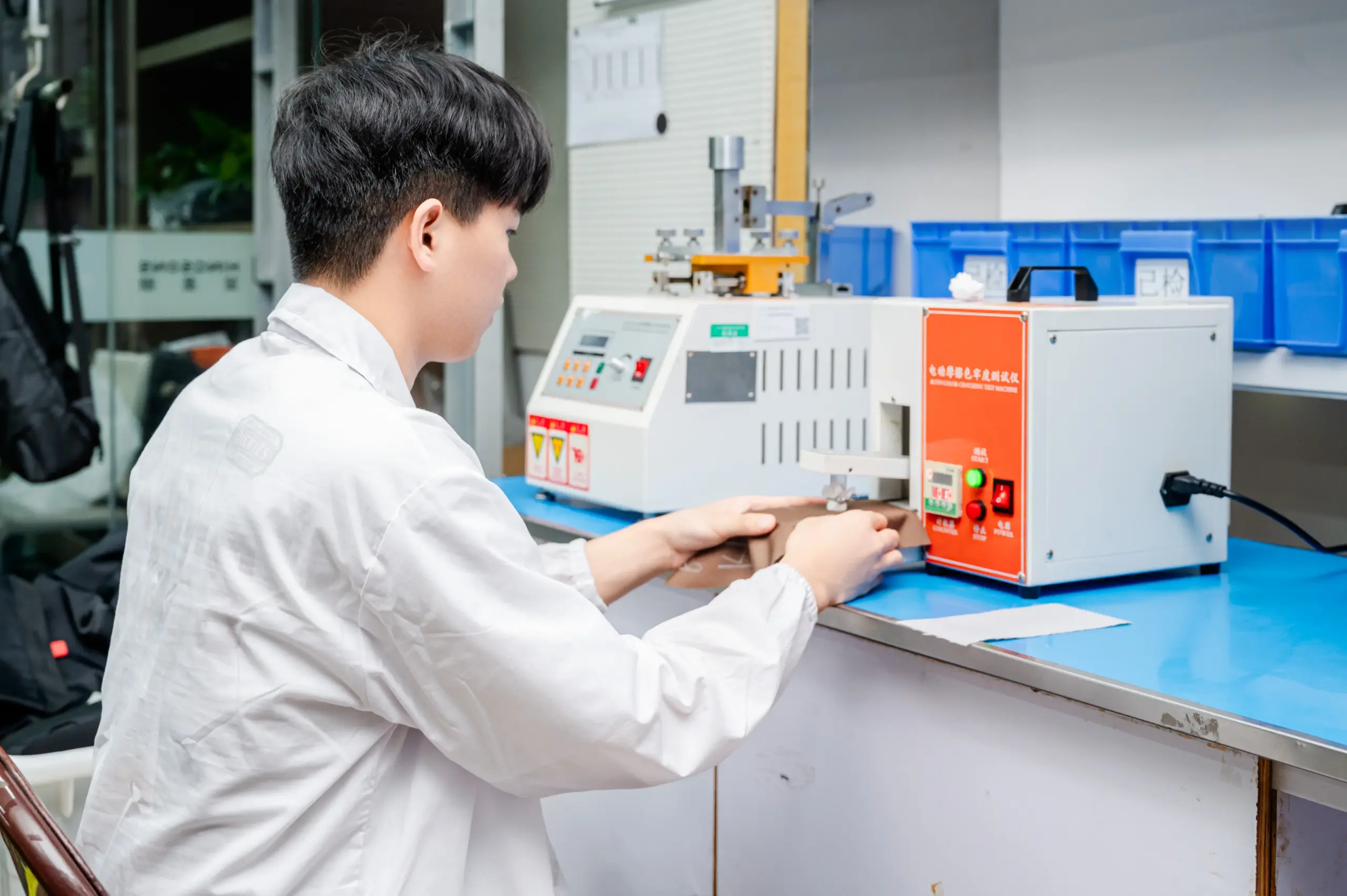

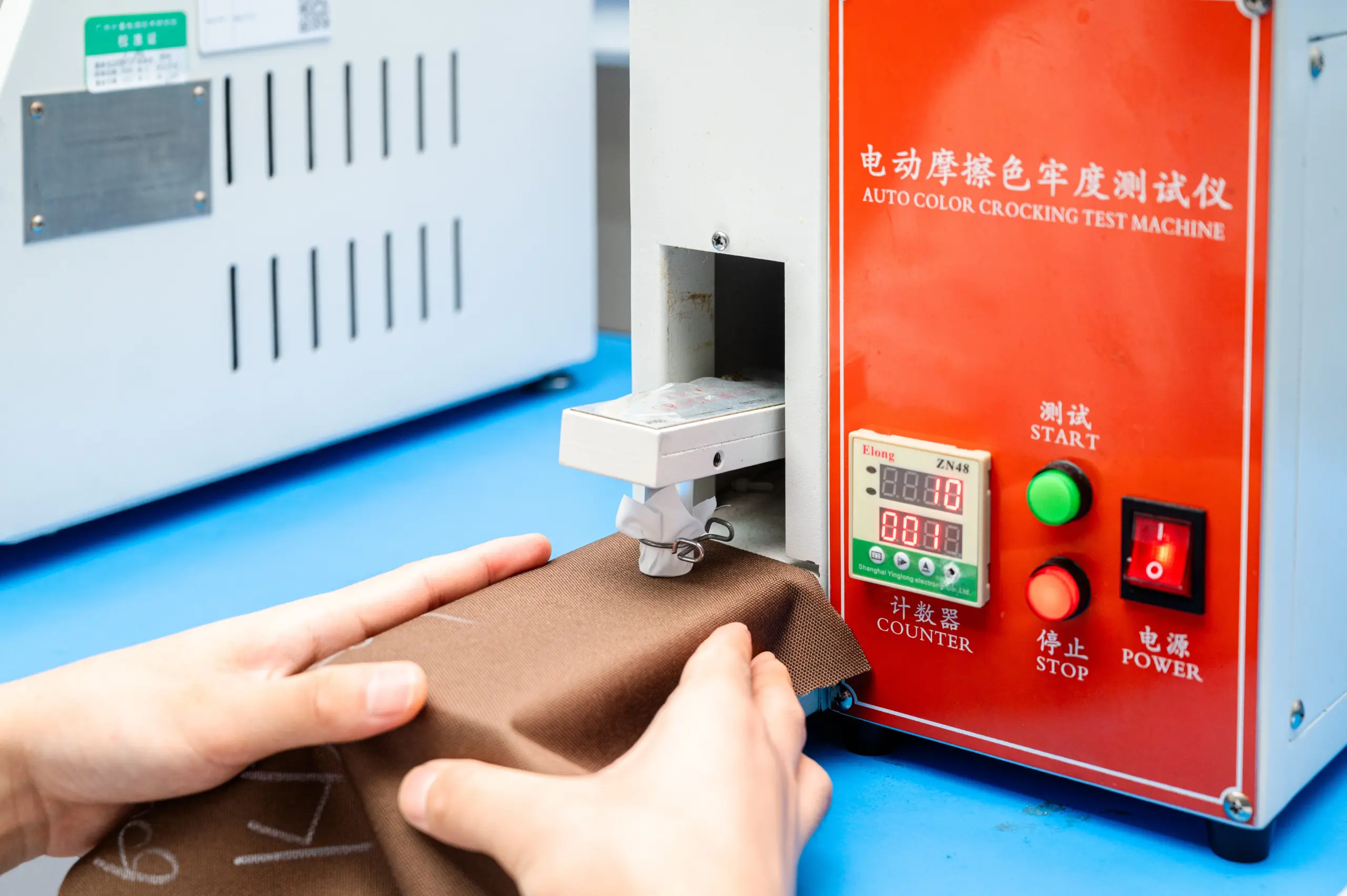

| 色牢度 | 摩擦脱色测试仪 | 国标/T 3920 | 无颜色转移——干湿两用 |
| Triple-protection validation | 现场测试 + internal protocol | Internal spec | Water, oil, antifouling performance per material batch |

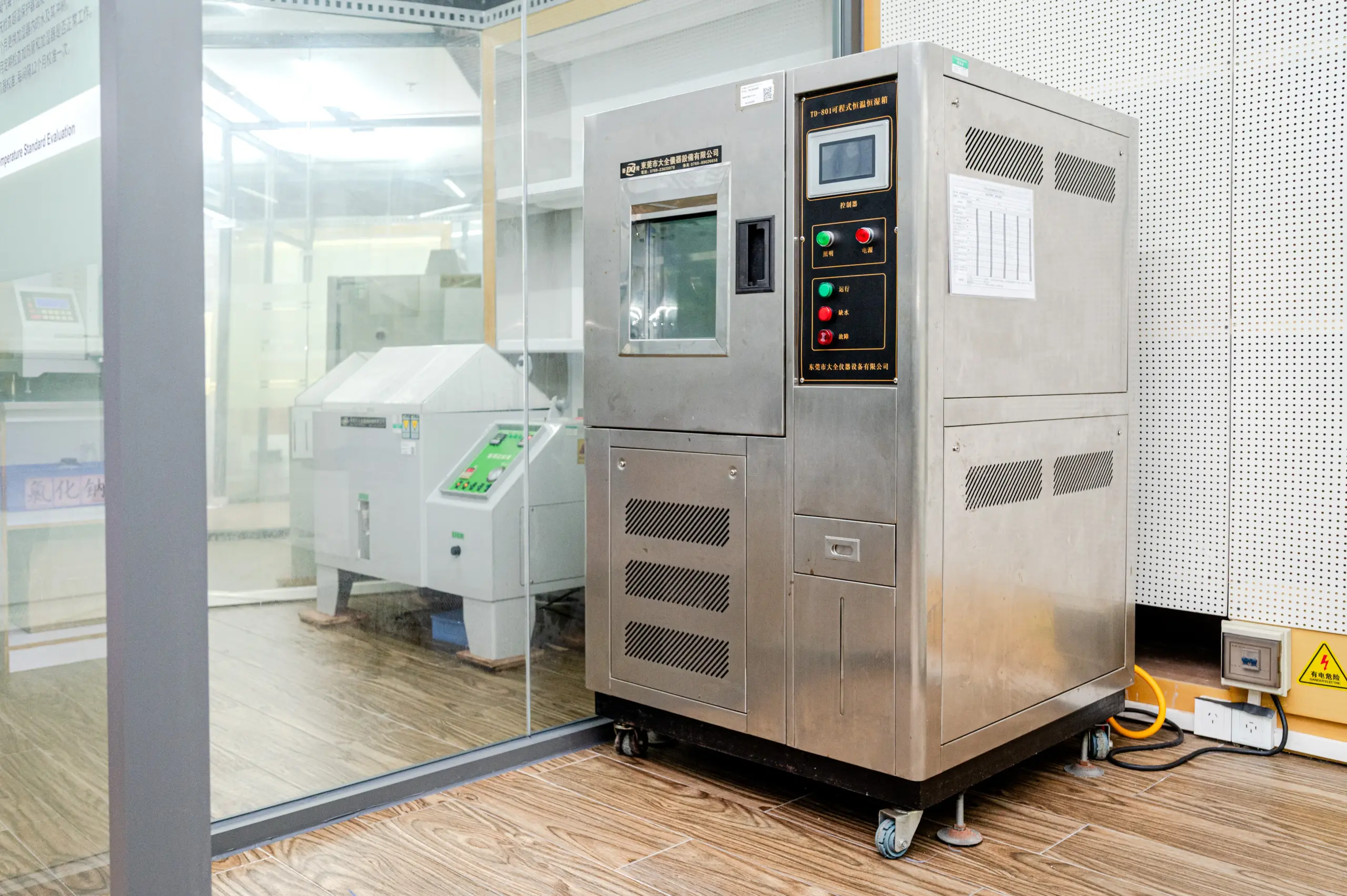

| Climate / humidity stability | 恒温恒湿试验箱 | 内部协议 | 不变形, delamination, or coating degradation |
| Seam tape adhesion | 内部协议 | Internal spec | Tape seal integrity verified under flex and hydrostatic pressure |
A note on waterproof zipper testing: The QB/T 2173 standard requires not just tooth retention but zero chain burst — the failure mode where teeth separate under lateral pressure, destroying the seal while teeth remain individually intact. This is the waterproof zipper failure mode that generates “not actually waterproof” product reviews. Kingsons tests for it on every batch. QC documentation available on request.
“防水的” is one of the most abused claims in the bag market. Most products that carry it rely on a single DWR coating and a standard zipper. Kingsons builds waterproof bags with three independent barriers and tests each of them — fabric performance, seam integrity, and zipper chain burst resistance — on every production batch.
